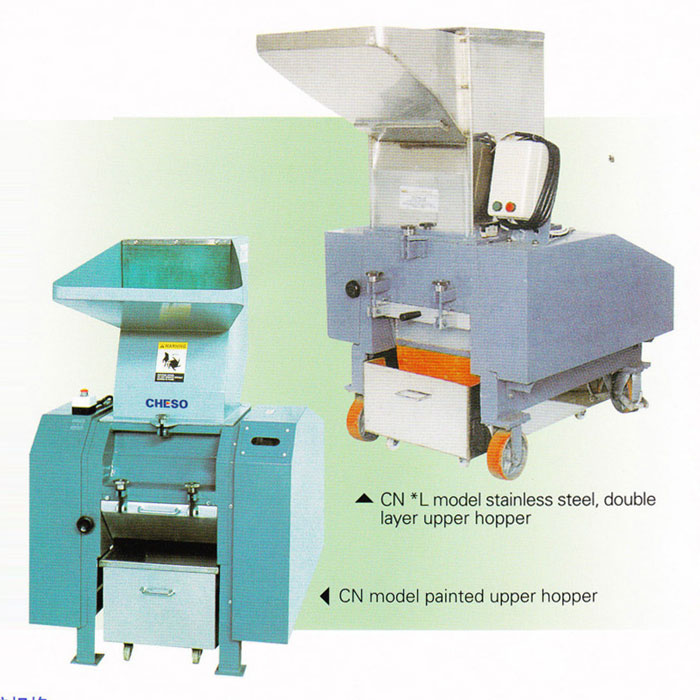

CN Granulator

Categories: ,

Currently, there isn't any relevant content available for this section. The content shown here is just temporary and will be updated as soon as possible. Indeed, we need a little more time to provide you the best and detailed information!

DOWNLOAD PDF
ENQUIRE NOW

Special Features

  • The CN Granulator is suitable for crushing runner, semi-products and etc.
  • Universal application for using of claw blades or pain blades. Elegant chrome steel blades, durable and rigid.
  • Japanese and European electric devices were selected for safety usage.
  • Simple design, easy for maintenance and cleaning.
  • Wide range of model suit to any require needed.
Model CN-2(L) CN-5(L) CN-10(L) CN-15(L) CN-20(L) CN-30(L)
Motor (HP) 2-3 5 7.5-10 15 20-25 30-40
Inlet (LxW) 200×160 200×250 300×250 400×250 540×400 675×400
Capacity (Kg/hr) 120 to 150 150 to 250 200 to 400 300 to 550 400 to 650 500 to 700
Revolution (rpm/min) 350 360 360 365 365 370
Fixed Blades (Pcs) 2 2 2 2 2 4
Rotary Blades (Pcs) 6 6 9 12 12 15
Dimension (LxWxH) (mm) 850x530x1060 960x57x1340 920x730x1350 1100x900x1470 1320x1120x1700 1450x1410x1700
Weight (Kg) 205 410 650 980 1250 1950
